Core System for Smart Production Management
A6.iAndonSmart production

Core System for Smart Production Management

Machines, work orders and downtime records in one place.

Case ID
IANDON-03
Module
A6.iAndon
Application
Smart production
Industry
Plastic injection molding contractor
  • Smart factory
  • OEE
  • Reports
Discuss this caseView all cases
SHEET 01 · Case story

Machines, work orders and downtime records in one place.

The injection molding plant uses an on-site computer and I/O modules to collect equipment status, then brings it together with work orders, downtime and reports. Floor and office teams view data by role, giving production meetings consistent figures to work from.

SHEET 02 · Challenge and response

From the site problem to a system approach.

  1. 01The challenge

    The floor and office see different information, while downtime and work-order data still need to be compiled by hand.

  2. 02The system approach

    Use a platform to bring machine, work-order, downtime, reporting and system-setting views into one daily management entry point.

  3. 03Reported outcome

    Give daily production meetings a consistent set of data to discuss.

SHEET 03 · Architecture

System architecture and data flow.

The field host Box and I/O acquisition modules send equipment status to a cloud platform, which provides role-based views. Source diagrams retain some original Traditional Chinese labels.

L4應用層Application
L3 → L4：REST API · WebSocket · LINE Webhook
L3雲端層Cloud
L2 → L3：TCP/IP over HTTPS
L2邊緣層Edge
L1 → L2：Modbus TCP / MQTT / API
L1感測層Sensing
Data flows upward
    • 工廠 Dashboard
    • Andon 大看板
    • LINE / Email 推播
    • Excel 報表
    • CaseViews by role
    REST API · WebSocket · LINE Webhook
    • Overview
    • Dashboard
    • Downtime History
    • Database
    • Production Reports
    • CaseWork orders, downtime and reports
    TCP/IP over HTTPS
    • iAndon Node
    • 既有平台 Box
    • 斷網本地暫存
    • CaseOn-site computer and I/O modules
    Modbus TCP / MQTT / API
    • 機台 / PLC 狀態
    • 產量計數
    • 工單 / 排程資料
    • 停機原因輸入
System flow

From equipment status to shared production data.

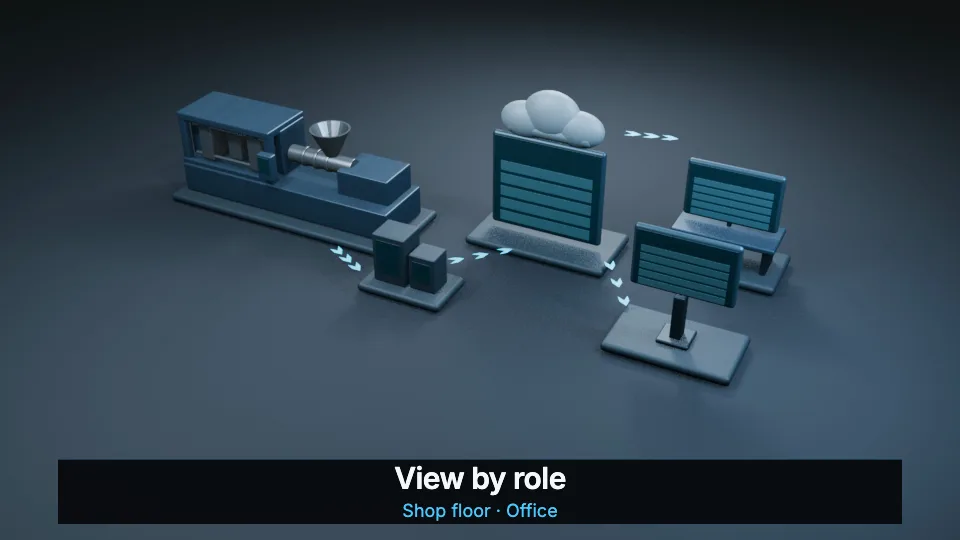

The field host Box and I/O acquisition modules send equipment status to a cloud platform, which provides role-based views.

Equipment status → Box + I/O → Cloud platform → Shop floor and office views

System architecture

  • Injection equipment

    Equipment status

  • Box + I/O

    Collect equipment status

  • Cloud platform

    Equipment, work orders, downtime, reports and system settings

  • Shop floor views

    View data by role

  • Office views

    View data by role

SHEET 04 · Wiring and hardware

Wiring diagrams and hardware configuration.

The diagram outlines data flow between site signals, edge devices, the network and the platform. Confirm installation and connection scope before work begins.

Original diagram notes (Traditional Chinese)
  1. 01主機櫃 / Main equipment cabinet 內含 24VDC PSU、既有平台 Box、iAndon Node
  2. 0224VDC PSU（100~240VAC, 單相 / DC 24V / 5A / 工業電源）以 24VDC 紅虛線供電給 既有平台 Box 與 iAndon Node
  3. 03既有平台 Box（IPC / HMI / Switch、本地資料整理、斷網本地暫存）與 iAndon Node（DI / AI / Modbus、現場訊號採集）以 Modbus TCP / MQTT 藍線連接
  4. 04既有平台 Box 上行至 既有平台 Cloud（部署於雲端 / 台灣）：TCP/IP over HTTPS via customer LAN（綠線）
  5. 054× 現場訊號 / 表計 / 感測器資料以橙線接入 iAndon Node：產線 A（PLC / 光電 / 計數，DI-1）；產線 B（PLC / 光電 / 計數，DI-2）；產線 C（PLC / 光電 / 計數，DI-3）；產線 D（PLC / 光電 / 計數，DI-4）

TOTAL既有平台 Box + iAndon Node + 現場點位 / 表計 / 感測器 = iAndon 基準配置

Original diagram legend藍線 = Ethernet / Modbus TCP / TCP-IP；綠線 = HTTPS / TCP-IP (Cloud Uplink)；橙線 = 乾接點 / 計數脈波 / PLC 狀態訊號；紅虛線 = 24VDC Power / 低壓電源Planning reference with Traditional Chinese labels. Confirm wire colors, terminals, power and communications against site-approved documents.
SHEET 05 · Before implementation

What to confirm before work begins.

This material describes a planning direction. Confirm site points, installation, report definitions and alert rules against actual site conditions.

  1. 01Site points and signal sources
  2. 02Communication protocols and network conditions
  3. 03Power, panels and installation method
  4. 04Report fields and data definitions
  5. 05Alert rules and responsible people
  6. 06Equipment brands, models and quantities
